Ceratizit

7.0723208E7

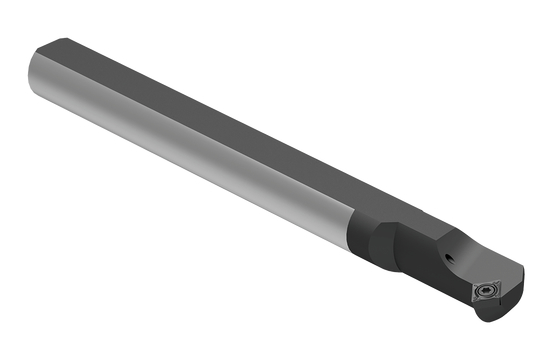

MAXILOCK S INTERNAL TOOLHOLDER

Specifications

Overall Length (Metric)104.15
SeriesMaxiLock-S
Toolholder StyleSCMCL
Overall Length (Inch)4.1
Short DescriptionA08H SCMCL 06
Long DescriptionMAXILOCK S INTERNAL TOOLHOLDER A08H SCMCL 06
Direction Of HandLeft
Unit Of MeasureMetric
MaterialSteel
Shank Height7 mm
Orthogonal Rake Angle15 degrees
Connection Diameter (Decimal)0.32
Connection Diameter (Metric)8.0
Functional Length (Decimal)3.94
Functional Length (Metric)100.0
Functional Width (Decimal)0.22
Functional Width (Metric)5.5
Head Length (Decimal)0.37
Head Length (Metric)9.32
Min. Bore Diameter (Decimal)0.42
Min. Bore Diameter (Metric)10.5
Body Diameter Reduced (Decimal)0.3
Body Diameter Reduced (Metric)7.6
Connection TypeCYL
Reduced Body Diameter Length (Metric)20.0
Reduced Body Diameter Length (Decimal)0.79
Tightening Torque (Nm)1,2
Holder FormSCMC50
