Ceratizit

7.0722216E7

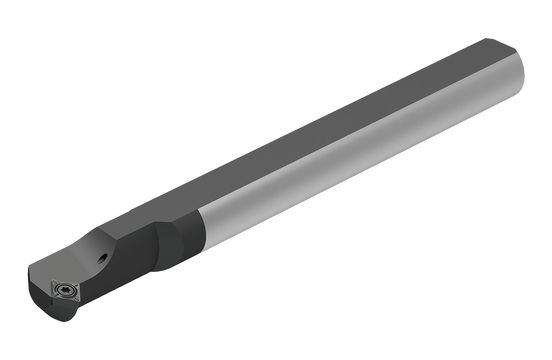

MAXILOCK S INTERNAL TOOLHOLDER

Specifications

Overall Length (Metric)154.15
SeriesMaxiLock-S
Toolholder StyleSCMCR
Overall Length (Inch)6.07
Short DescriptionA16M SCMCR 06
Long DescriptionMAXILOCK S INTERNAL TOOLHOLDER A16M SCMCR 06
Direction Of HandRight
Unit Of MeasureMetric
MaterialSteel
Shank Height15 mm
Orthogonal Rake Angle13.60 degrees
Connection Diameter (Decimal)0.63
Connection Diameter (Metric)16.0
Functional Length (Decimal)5.91
Functional Length (Metric)150.0
Functional Width (Decimal)0.36
Functional Width (Metric)9.0
Head Length (Decimal)0.36
Head Length (Metric)9.0
Min. Bore Diameter (Decimal)0.63
Min. Bore Diameter (Metric)16.0
Body Diameter Reduced (Decimal)0.48
Body Diameter Reduced (Metric)12.0
Connection TypeCYL
Reduced Body Diameter Length (Metric)40.0
Reduced Body Diameter Length (Decimal)1.58
Tightening Torque (Nm)1,2
Holder FormSCMC50
