Ceratizit
7.0722212E7

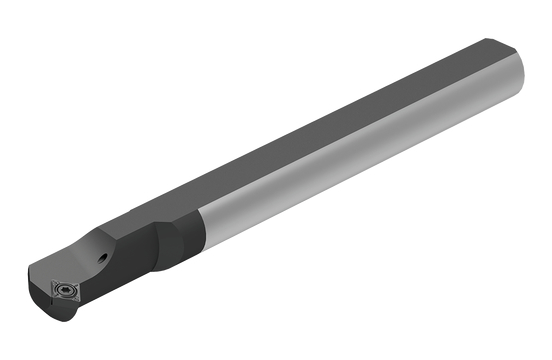

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 129.15 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCMCR |
| Overall Length (Inch) | 5.09 |
| Short Description | A12K SCMCR 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A12K SCMCR 06 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 11 mm |
| Orthogonal Rake Angle | 15 degrees |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12.0 |
| Functional Length (Decimal) | 4.93 |
| Functional Length (Metric) | 125.0 |
| Functional Width (Decimal) | 0.28 |
| Functional Width (Metric) | 7.0 |
| Head Length (Decimal) | 0.36 |
| Head Length (Metric) | 9.03 |
| Min. Bore Diameter (Decimal) | 0.52 |
| Min. Bore Diameter (Metric) | 13.0 |
| Body Diameter Reduced (Decimal) | 0.46 |
| Body Diameter Reduced (Metric) | 11.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 32.0 |
| Reduced Body Diameter Length (Decimal) | 1.26 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCMC50 |
