Ceratizit
7.0721216E7

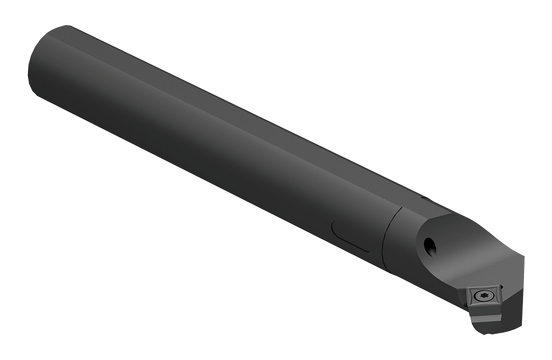

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 156.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SSSCL |
| Overall Length (Inch) | 6.15 |
| Short Description | A16M SSSCL 09 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A16M SSSCL 09 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 15.25 mm |
| Orthogonal Rake Angle | 8 degrees |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16.0 |
| Functional Length (Decimal) | 5.91 |
| Functional Length (Metric) | 150.0 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11.0 |
| Head Length (Decimal) | 0.36 |
| Head Length (Metric) | 8.95 |
| Min. Bore Diameter (Decimal) | 0.79 |
| Min. Bore Diameter (Metric) | 20.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.12 |
| End Chamfer Distance (Metric) | 3.0 |
| Body Diameter Reduced (Decimal) | 0.62 |
| Body Diameter Reduced (Metric) | 15.7 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 29.0 |
| Reduced Body Diameter Length (Decimal) | 1.15 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SSSC45 |
