Ceratizit
7.072024E7

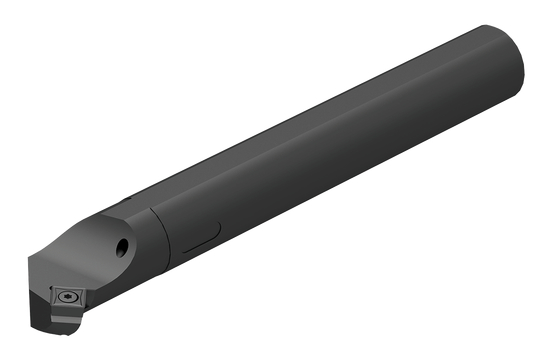

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 308.1 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SSSCR |
| Overall Length (Inch) | 12.13 |
| Short Description | A40T SSSCR 12 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A40T SSSCR 12 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 39 mm |
| Orthogonal Rake Angle | 4 degrees |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40.0 |
| Functional Length (Decimal) | 11.82 |
| Functional Length (Metric) | 300.0 |
| Functional Width (Decimal) | 1.07 |
| Functional Width (Metric) | 27.0 |
| Head Length (Decimal) | 0.6 |
| Head Length (Metric) | 15.17 |
| Min. Bore Diameter (Decimal) | 1.97 |
| Min. Bore Diameter (Metric) | 50.0 |
| End Chamfer Angle | 27.56 degrees |
| End Chamfer Distance (Decimal) | 0.79 |
| End Chamfer Distance (Metric) | 20.0 |
| Body Diameter Reduced (Decimal) | 1.56 |
| Body Diameter Reduced (Metric) | 39.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 60.0 |
| Reduced Body Diameter Length (Decimal) | 2.37 |
| Tightening Torque (Nm) | 5.0 |
| Holder Form | SSSC45 |
