Ceratizit
7.0718012E7

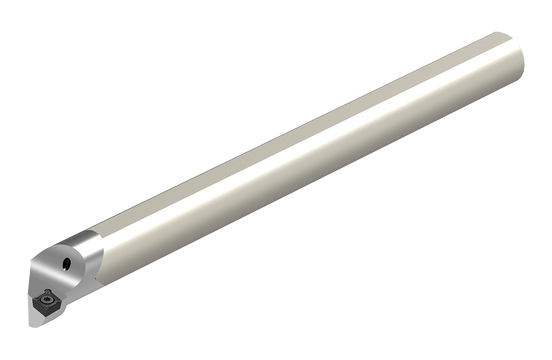

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 180.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCR |
| Overall Length (Inch) | 7.09 |
| Short Description | E12Q SCLCR 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER E12Q SCLCR 06 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | HM |
| Shank Height | 11.50 mm |
| Orthogonal Rake Angle | 6 degrees |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12.0 |
| Functional Width (Decimal) | 0.36 |
| Functional Width (Metric) | 9.0 |
| Head Length (Decimal) | 0.4 |
| Head Length (Metric) | 10.0 |
| Min. Bore Diameter (Decimal) | 0.63 |
| Min. Bore Diameter (Metric) | 16.0 |
| End Chamfer Angle | 25 degrees |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 26.0 |
| Reduced Body Diameter Length (Decimal) | 1.03 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCLC95 |
