Ceratizit
7.0718008E7

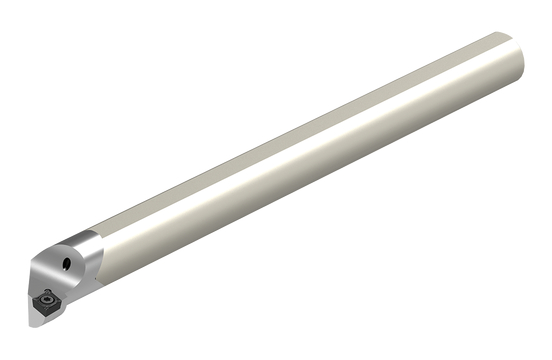

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCR |
| Overall Length (Inch) | 3.94 |
| Short Description | E08H SCLCR 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER E08H SCLCR 06 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | HM |
| Shank Height | 7.60 mm |
| Orthogonal Rake Angle | 11 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8.0 |
| Functional Width (Decimal) | 0.24 |
| Functional Width (Metric) | 6.0 |
| Head Length (Decimal) | 0.38 |
| Head Length (Metric) | 9.5 |
| Min. Bore Diameter (Decimal) | 0.44 |
| Min. Bore Diameter (Metric) | 11.0 |
| End Chamfer Angle | 10 degrees |
| End Chamfer Distance (Decimal) | 0.11 |
| End Chamfer Distance (Metric) | 2.6 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 20.0 |
| Reduced Body Diameter Length (Decimal) | 0.79 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCLC95 |
