7.071621E7

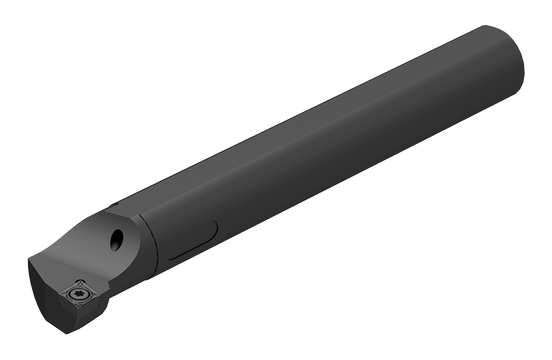

MAXILOCK S INTERNAL TOOLHOLDER

Specifications

Overall Length (Metric)	100.0
Series	MaxiLock-S
Toolholder Style	SCLCR
Overall Length (Inch)	3.94
Short Description	A10H SCLCR 06
Long Description	MAXILOCK S INTERNAL TOOLHOLDER A10H SCLCR 06
Direction Of Hand	Right
Unit Of Measure	Metric
Material	Steel
Shank Height	9.50 mm
Orthogonal Rake Angle	7 degrees
Connection Diameter (Decimal)	0.4
Connection Diameter (Metric)	10.0
Functional Width (Decimal)	0.28
Functional Width (Metric)	7.0
Head Length (Decimal)	0.39
Head Length (Metric)	9.88
Min. Bore Diameter (Decimal)	0.52
Min. Bore Diameter (Metric)	13.0
End Chamfer Angle	42.26 degrees
End Chamfer Distance (Decimal)	0.39
End Chamfer Distance (Metric)	9.8
Body Diameter Reduced (Decimal)	0.39
Body Diameter Reduced (Metric)	9.7
Connection Type	CYL
Reduced Body Diameter Length (Metric)	19.0
Reduced Body Diameter Length (Decimal)	0.75
Tightening Torque (Nm)	1,2
Holder Form	SCLC95
