Ceratizit
7.071601E7

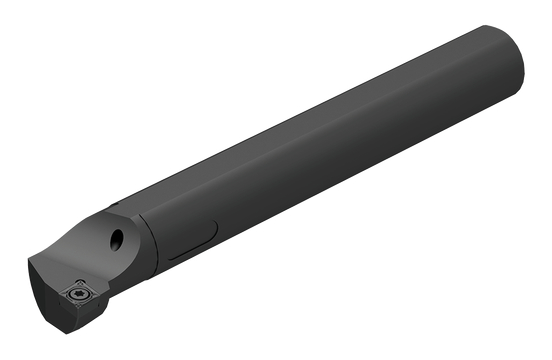

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCR |
| Overall Length (Inch) | 4.93 |
| Short Description | S10K SCLCR 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER S10K SCLCR 06 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 9.50 mm |
| Shank Height | 9 mm |
| Orthogonal Rake Angle | 9 degrees |
| Shank Width (Decimal) | 0.38 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10.0 |
| Functional Width (Decimal) | 0.28 |
| Functional Width (Metric) | 7.0 |
| Head Length (Decimal) | 0.32 |
| Head Length (Metric) | 8.0 |
| Min. Bore Diameter (Decimal) | 0.52 |
| Min. Bore Diameter (Metric) | 13.0 |
| End Chamfer Angle | 15 degrees |
| End Chamfer Distance (Decimal) | 0.38 |
| End Chamfer Distance (Metric) | 9.6 |
| Body Diameter Reduced (Decimal) | 0.38 |
| Body Diameter Reduced (Metric) | 9.5 |
| Connection Type | CYL |
| Functional Height (Metric) | 6.0 |
| Functional Height (Decimal) | 0.24 |
| Reduced Body Diameter Length (Metric) | 15.0 |
| Reduced Body Diameter Length (Decimal) | 0.6 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCLC95 |
