Ceratizit
7.0713116E9

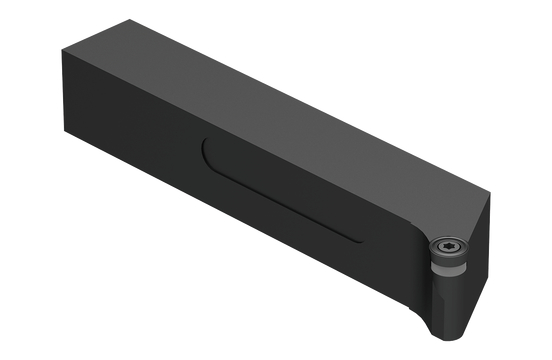

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SRGCL |
| Overall Length (Inch) | 3.94 |
| Short Description | SRGCL 1616 H08 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SRGCL 1616 H08 |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.63 Inch |
| Shank Width (Metric) | 16.0 |
| Shank Height (Metric) | 16.0 |
| Functional Width (Decimal) | 0.79 |
| Functional Width (Metric) | 20.0 |
| Head Length (Decimal) | 0.44 |
| Head Length (Metric) | 11.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16.0 |
| Functional Height (Decimal) | 0.63 |
| Tightening Torque (Nm) | 1,8 |
| Holder Form | SRGC |
