Ceratizit
7.0708225E7

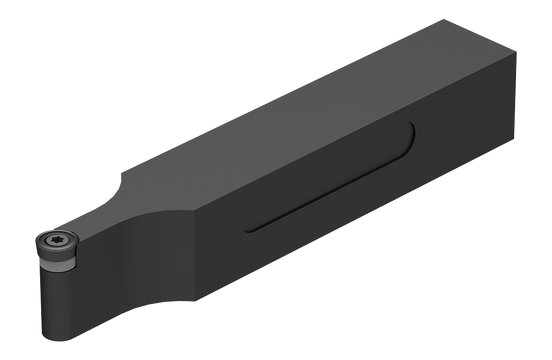

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SRDCN |
| Overall Length (Inch) | 5.91 |
| Short Description | SRDCN 2525 M10 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SRDCN 2525 M10 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 25 mm |
| Shank Width (Decimal) | 0.99 |
| Functional Width (Decimal) | 0.69 |
| Functional Width (Metric) | 17.5 |
| Head Length (Decimal) | 0.8 |
| Head Length (Metric) | 20.3 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 25.0 |
| Functional Height (Decimal) | 0.99 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SRDC0 |
