Ceratizit
7.0704232E7

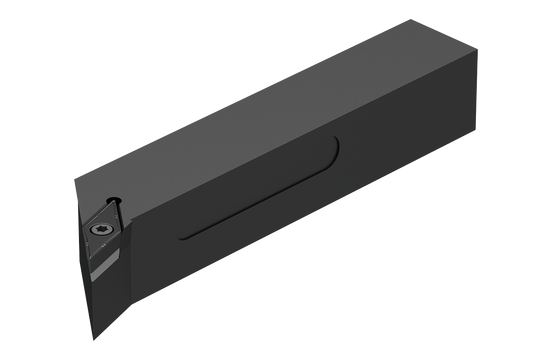

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVHCR |
| Overall Length (Inch) | 6.7 |
| Short Description | SVHCR 3225 P22 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SVHCR 3225 P22 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 32 mm |
| Shank Width (Decimal) | 0.99 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 0.78 |
| Head Length (Metric) | 19.6 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32.0 |
| Functional Height (Decimal) | 1.26 |
| Tightening Torque (Nm) | 5.0 |
| Holder Form | SVHC107,5 |
