Ceratizit
7.0699016E7

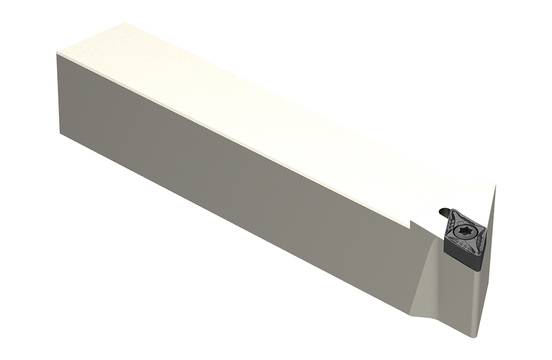

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDJNL |
| Overall Length (Inch) | 4.93 |
| Short Description | SDJNL 1616 K11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SDJNL 1616 K11 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Shank Height | 16 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.63 |
| Functional Width (Decimal) | 0.63 |
| Functional Width (Metric) | 16.0 |
| Head Length (Decimal) | 0.84 |
| Head Length (Metric) | 21.3 |
| End Chamfer Angle | 58.50 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16.0 |
| Functional Height (Decimal) | 0.63 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 20.8 |
| Overall Height (Decimal) | 0.82 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDJN93 |
