Ceratizit
7.069801E7

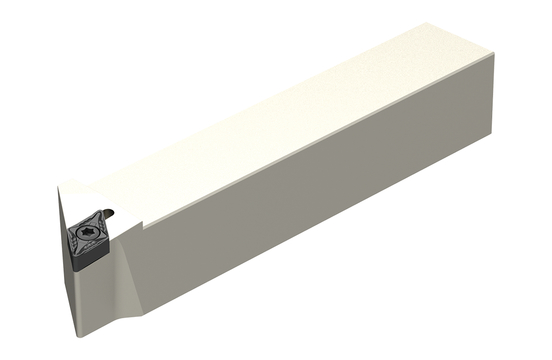

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDJNR |
| Overall Length (Inch) | 3.94 |
| Short Description | SDJNR 1012 H11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SDJNR 1012 H11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 12 mm |
| Shank Height | 10 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.48 |
| Functional Width (Decimal) | 0.48 |
| Functional Width (Metric) | 12.0 |
| Head Length (Decimal) | 0.84 |
| Head Length (Metric) | 21.3 |
| End Chamfer Angle | 58.50 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 10.0 |
| Functional Height (Decimal) | 0.4 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 13.5 |
| Overall Height (Decimal) | 0.54 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDJN93 |
