Ceratizit
7.0697125E7

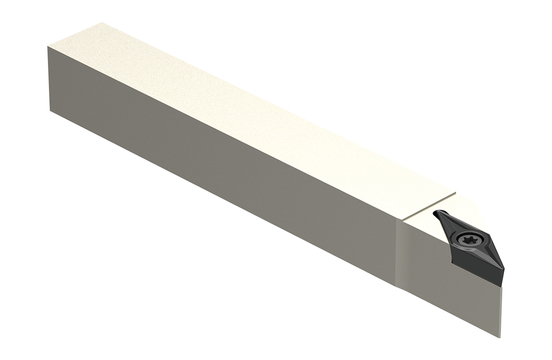

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVJCL |
| Overall Length (Inch) | 5.91 |
| Short Description | SVJCL 2525 M16 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SVJCL 2525 M16 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 25 mm |
| Shank Width (Decimal) | 0.99 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 1.28 |
| Head Length (Metric) | 32.5 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 25.0 |
| Functional Height (Decimal) | 0.99 |
| Overall Height (Metric) | 25.0 |
| Overall Height (Decimal) | 0.99 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SVJC93 |
