Ceratizit
7.068801E7

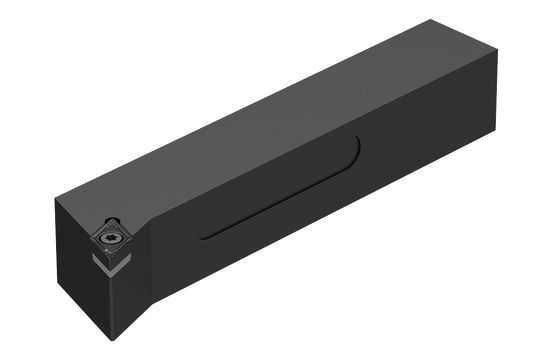

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 70.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDHCR |
| Overall Length (Inch) | 2.76 |
| Short Description | SDHCR 1010 E07 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SDHCR 1010 E07 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 10 mm |
| Shank Height | 10 mm |
| Shank Width (Decimal) | 0.4 |
| Functional Width (Decimal) | 0.48 |
| Functional Width (Metric) | 12.0 |
| Head Length (Decimal) | 0.22 |
| Head Length (Metric) | 5.5 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 10.0 |
| Functional Height (Decimal) | 0.4 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SDHC107,5 |
