Ceratizit
7.0684008E7

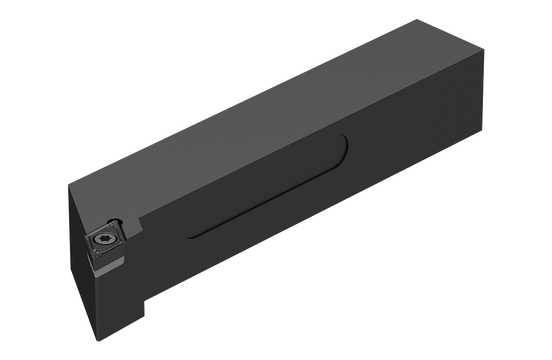

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 60.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDJCR |
| Overall Length (Inch) | 2.37 |
| Short Description | SDJCR 0808 D07 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SDJCR 0808 D07 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 8 mm |
| Shank Height | 8 mm |
| Shank Width (Decimal) | 0.32 |
| Functional Width (Decimal) | 0.4 |
| Functional Width (Metric) | 10.0 |
| Head Length (Decimal) | 0.52 |
| Head Length (Metric) | 13.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 8.0 |
| Functional Height (Decimal) | 0.32 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SDJC93 |
