Ceratizit
7.067702E7

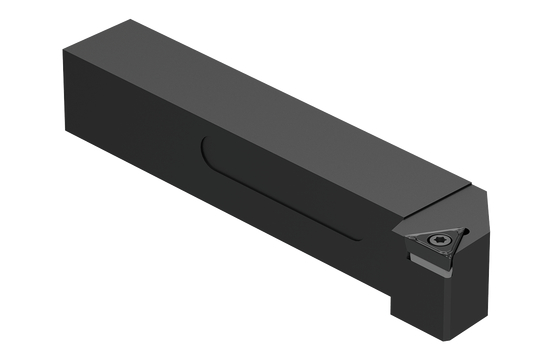

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | STGCL |
| Overall Length (Inch) | 4.93 |
| Short Description | STGCL 2020 K16 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER STGCL 2020 K16 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Shank Width (Decimal) | 0.79 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 0.87 |
| Head Length (Metric) | 22.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.28 |
| End Chamfer Distance (Metric) | 7.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Overall Height (Metric) | 19.5 |
| Overall Height (Decimal) | 0.77 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | STGC90 |
