Ceratizit
7.0676012E7

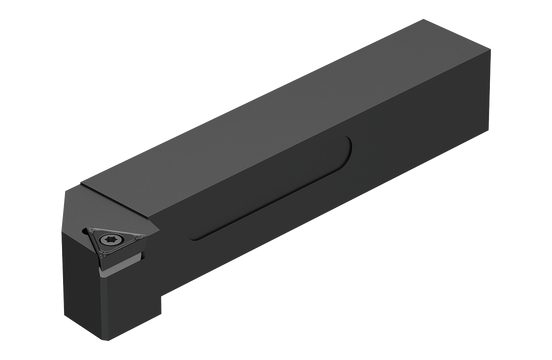

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 80.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | STGCR |
| Overall Length (Inch) | 3.15 |
| Short Description | STGCR 1212 F11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER STGCR 1212 F11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 12 mm |
| Shank Height | 12 mm |
| Shank Width (Decimal) | 0.48 |
| Functional Width (Decimal) | 0.63 |
| Functional Width (Metric) | 16.0 |
| Head Length (Decimal) | 0.6 |
| Head Length (Metric) | 15.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 12.0 |
| Functional Height (Decimal) | 0.48 |
| Overall Height (Metric) | 11.8 |
| Overall Height (Decimal) | 0.47 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | STGC90 |
