Ceratizit
7.0665016E7

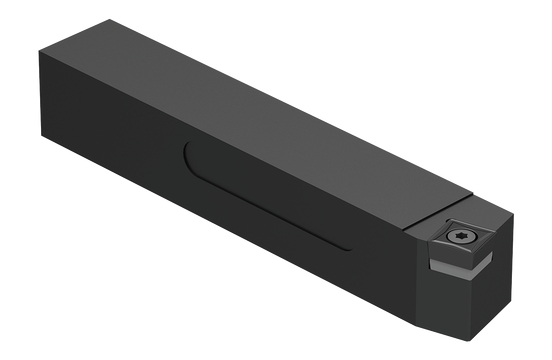

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SSBCL |
| Overall Length (Inch) | 3.94 |
| Short Description | SSBCL 1616 H09 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SSBCL 1616 H09 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Shank Height | 16 mm |
| Shank Width (Decimal) | 0.63 |
| Functional Width (Decimal) | 0.52 |
| Functional Width (Metric) | 13.0 |
| Head Length (Decimal) | 0.79 |
| Head Length (Metric) | 20.0 |
| End Chamfer Angle | 75 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16.0 |
| Functional Height (Decimal) | 0.63 |
| Overall Height (Metric) | 15.5 |
| Overall Height (Decimal) | 0.61 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SSBC75 |
