Ceratizit
7.0656116E7

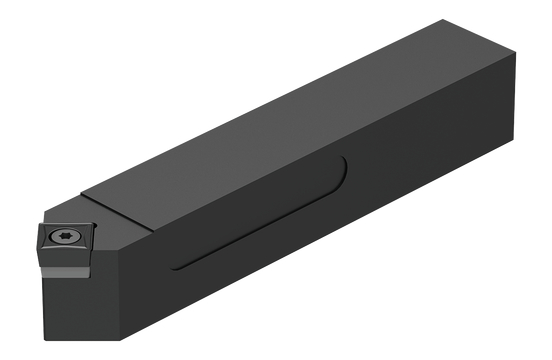

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SSDCN |
| Overall Length (Inch) | 3.94 |
| Short Description | SSDCN 1616 H12 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SSDCN 1616 H12 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Shank Height | 16 mm |
| Shank Width (Decimal) | 0.63 |
| Functional Width (Decimal) | 0.32 |
| Functional Width (Metric) | 8.0 |
| Head Length (Decimal) | 0.99 |
| Head Length (Metric) | 25.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16.0 |
| Functional Height (Decimal) | 0.63 |
| Tightening Torque (Nm) | 5.0 |
| Holder Form | SSDC45 |
