Ceratizit
7.064002E7

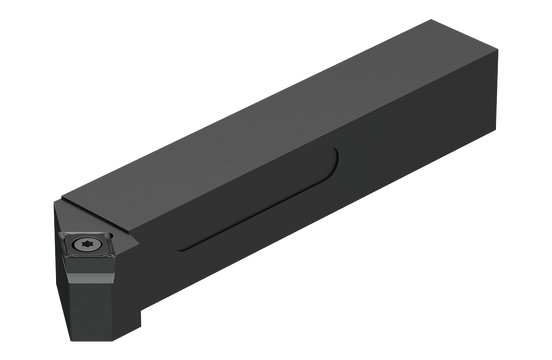

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 134.1 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCSCR |
| Overall Length (Inch) | 5.28 |
| Short Description | SCSCR 2020 K12 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SCSCR 2020 K12 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Shank Width (Decimal) | 0.79 |
| Functional Length (Decimal) | 4.93 |
| Functional Length (Metric) | 125.0 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 0.79 |
| Head Length (Metric) | 20.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Overall Height (Metric) | 19.3 |
| Overall Height (Decimal) | 0.76 |
| Tightening Torque (Nm) | 5.0 |
| Holder Form | SCSC45 |
