Ceratizit
7.059912501E9

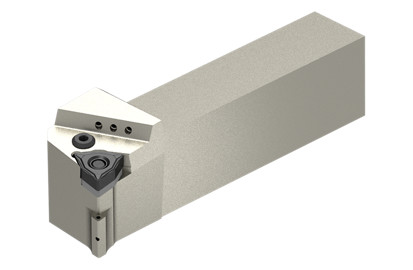

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 120.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PWLNR |
| Overall Length (Inch) | 4.73 |
| Short Description | PWLNR 2525 X08-T DC |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PWLNR 2525 X08-T DC |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.99 Inch |
| Shank Width (Metric) | 25.0 |
| Shank Height (Metric) | 25.0 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 1.38 |
| Head Length (Metric) | 35.0 |
| Connection Type | VKT - Square |
| Coolant Entry Thread Size | G1/8 |
| Coolant Radial Entry Thread Size | M6 |
| Tightening Torque (Nm) | 4.0 |
| Holder Form | PWLN95 |
