Ceratizit
7.0598032E9

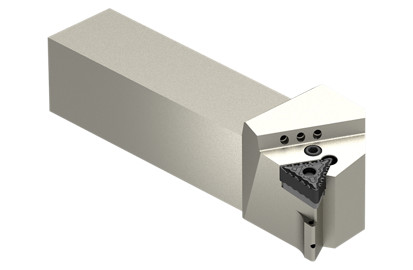

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 136.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PTGNL |
| Overall Length (Inch) | 5.36 |
| Short Description | PTGNL 3225 X16-T DC |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PTGNL 3225 X16-T DC |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.99 Inch |
| Shank Width (Metric) | 25.0 |
| Shank Height (Metric) | 32.0 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 1.42 |
| Head Length (Metric) | 36.0 |
| Connection Type | VKT - Square |
| Coolant Entry Thread Size | G1/8 |
| Coolant Radial Entry Thread Size | M6 |
| Tightening Torque (Nm) | 3.0 |
| Holder Form | PTGN91 |
