Ceratizit
7.059504E9

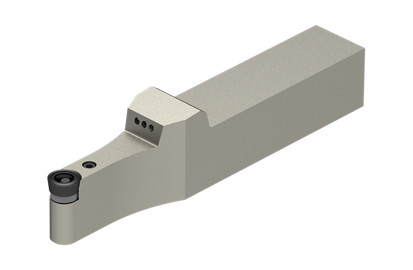

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 216.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PRDCN |
| Overall Length (Inch) | 8.51 |
| Short Description | PRDCN 4040 X25-T DC |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PRDCN 4040 X25-T DC |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.58 Inch |
| Shank Width (Metric) | 40.0 |
| Shank Height (Metric) | 40.0 |
| Functional Width (Decimal) | 1.28 |
| Functional Width (Metric) | 32.5 |
| Head Length (Decimal) | 3.59 |
| Head Length (Metric) | 91.0 |
| Connection Type | VKT - Square |
| Coolant Entry Thread Size | G1/8 |
| Coolant Radial Entry Thread Size | M6 |
| Functional Height (Metric) | 40.0 |
| Functional Height (Decimal) | 1.58 |
| Overall Height (Metric) | 49.0 |
| Overall Height (Decimal) | 1.93 |
| Tightening Torque (Nm) | 6.0 |
| Holder Form | PRDC0 |
