Ceratizit
7.059502E9

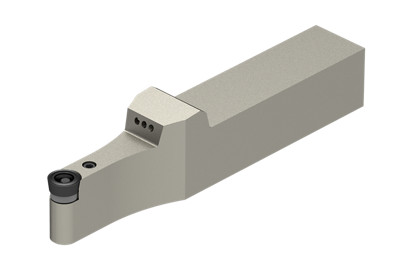

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 132.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PRDCN |
| Overall Length (Inch) | 5.2 |
| Short Description | PRDCN 2020 X12-T DC |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PRDCN 2020 X12-T DC |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.79 Inch |
| Shank Width (Metric) | 20.0 |
| Shank Height (Metric) | 20.0 |
| Functional Width (Decimal) | 0.63 |
| Functional Width (Metric) | 16.0 |
| Head Length (Decimal) | 2.48 |
| Head Length (Metric) | 63.0 |
| Connection Type | VKT - Square |
| Coolant Entry Thread Size | G1/8 |
| Coolant Radial Entry Thread Size | M6 |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Overall Height (Metric) | 27.1 |
| Overall Height (Decimal) | 1.07 |
| Tightening Torque (Nm) | 3.0 |
| Holder Form | PRDC0 |
