Ceratizit
7.0595025E9

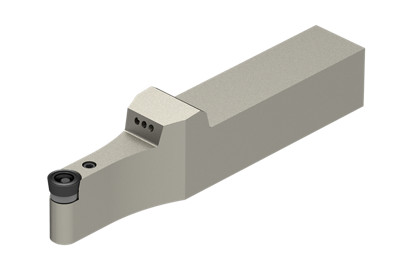

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PRDCN |
| Overall Length (Inch) | 5.99 |
| Short Description | PRDCN 2525 X12-T DC |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PRDCN 2525 X12-T DC |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.99 Inch |
| Shank Width (Metric) | 25.0 |
| Shank Height (Metric) | 25.0 |
| Functional Width (Decimal) | 0.73 |
| Functional Width (Metric) | 18.5 |
| Head Length (Decimal) | 2.68 |
| Head Length (Metric) | 68.0 |
| Connection Type | VKT - Square |
| Coolant Entry Thread Size | G1/8 |
| Coolant Radial Entry Thread Size | M6 |
| Functional Height (Metric) | 25.0 |
| Functional Height (Decimal) | 0.99 |
| Overall Height (Metric) | 34.4 |
| Overall Height (Decimal) | 1.36 |
| Tightening Torque (Nm) | 3.0 |
| Holder Form | PRDC0 |
