Ceratizit
7.0593132E9

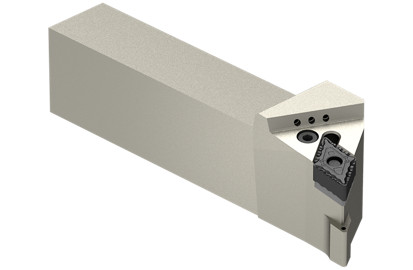

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 145.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PDJNL |
| Overall Length (Inch) | 5.71 |
| Short Description | PDJNL 3232 X15-T DC |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PDJNL 3232 X15-T DC |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.26 Inch |
| Shank Width (Metric) | 32.0 |
| Shank Height (Metric) | 32.0 |
| Functional Width (Decimal) | 1.58 |
| Functional Width (Metric) | 40.0 |
| Head Length (Decimal) | 1.78 |
| Head Length (Metric) | 45.0 |
| Connection Type | VKT - Square |
| Coolant Entry Thread Size | G1/8 |
| Coolant Radial Entry Thread Size | M6 |
| Overall Height (Metric) | 43.8 |
| Overall Height (Decimal) | 1.73 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | PDJN93 |
