Ceratizit
7.059082E7

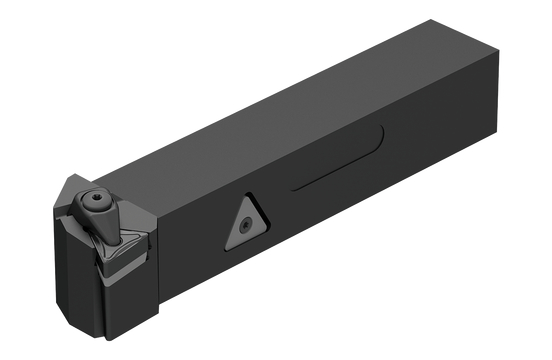

MAXILOCK D EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DTJNR |
| Overall Length (Inch) | 4.93 |
| Short Description | DTJNR 2020 K16 |
| Long Description | MAXILOCK D EXTERNAL TOOLHOLDER DTJNR 2020 K16 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.79 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 0.91 |
| Head Length (Metric) | 23.0 |
| End Chamfer Angle | 65 degrees |
| End Chamfer Distance (Decimal) | 0.4 |
| End Chamfer Distance (Metric) | 10.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 23.8 |
| Overall Height (Decimal) | 0.94 |
| Tightening Torque (Nm) | 2.0 |
| Holder Form | DTJN93 |
