Ceratizit
7.0589032E7

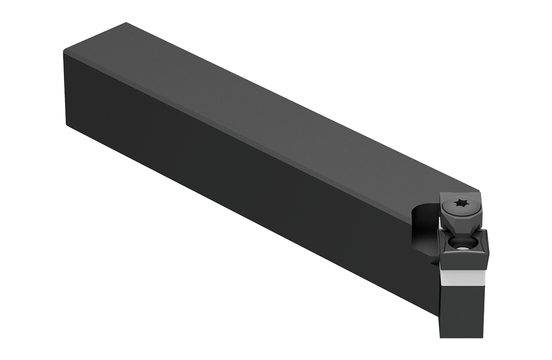

MAXILOCK P EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 178.65 |
|---|---|
| Series | MaxiLock-P |
| Toolholder Style | MSSCL |
| Overall Length (Inch) | 7.04 |
| Short Description | MSSCL 3225 P12 |
| Long Description | MAXILOCK P EXTERNAL TOOLHOLDER MSSCL 3225 P12 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 32 mm |
| Shank Width (Decimal) | 0.99 |
| Functional Length (Decimal) | 6.7 |
| Functional Length (Metric) | 170.0 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 1.11 |
| Head Length (Metric) | 28.0 |
| End Chamfer Angle | 45 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32.0 |
| Functional Height (Decimal) | 1.26 |
| Overall Height (Metric) | 32.0 |
| Overall Height (Decimal) | 1.26 |
| Tightening Torque (Nm) | 5.0 |
| Holder Form | MSSC45 |
