Ceratizit
7.0588025E7

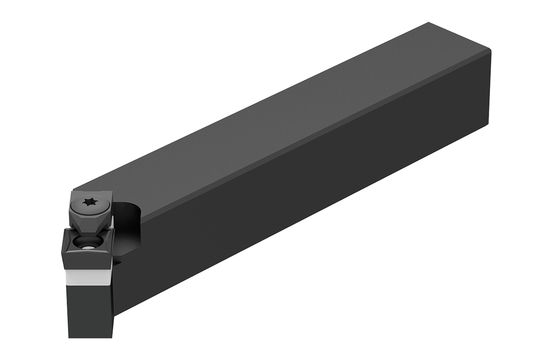

MAXILOCK P EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 158.65 |
|---|---|
| Series | MaxiLock-P |
| Toolholder Style | MSSCR |
| Overall Length (Inch) | 6.25 |
| Short Description | MSSCR 2525 M12 |
| Long Description | MAXILOCK P EXTERNAL TOOLHOLDER MSSCR 2525 M12 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 25 mm |
| Shank Width (Decimal) | 0.99 |
| Functional Length (Decimal) | 5.91 |
| Functional Length (Metric) | 150.0 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 1.11 |
| Head Length (Metric) | 28.0 |
| End Chamfer Angle | 45 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 25.0 |
| Functional Height (Decimal) | 0.99 |
| Overall Height (Metric) | 25.0 |
| Overall Height (Decimal) | 0.99 |
| Tightening Torque (Nm) | 5.0 |
| Holder Form | MSSC45 |
