Ceratizit
7.0573116E9

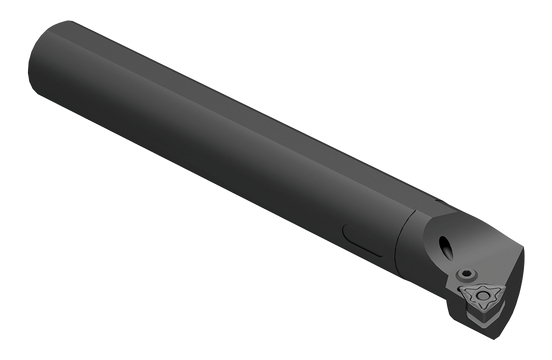

MAXILOCK N INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PWLNL |
| Overall Length (Inch) | 5.91 |
| Short Description | A16M PWLNL 06 |
| Long Description | MAXILOCK N INTERNAL TOOLHOLDER A16M PWLNL 06 |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Orthogonal Rake Angle | 8 degrees |
| Shank Height (Metric) | 15.0 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16.0 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11.0 |
| Head Length (Decimal) | 0.65 |
| Head Length (Metric) | 16.5 |
| Min. Bore Diameter (Decimal) | 0.79 |
| Min. Bore Diameter (Metric) | 20.0 |
| End Chamfer Angle | 64.80 degrees |
| Body Diameter Reduced (Decimal) | 0.61 |
| Body Diameter Reduced (Metric) | 15.5 |
| Connection Type | CYL |
| Inclination Angle | 6 degrees |
| Reduced Body Diameter Length (Metric) | 20.0 |
| Reduced Body Diameter Length (Decimal) | 0.79 |
| Tightening Torque (Nm) | 3.0 |
| Holder Form | PWLN95 |
