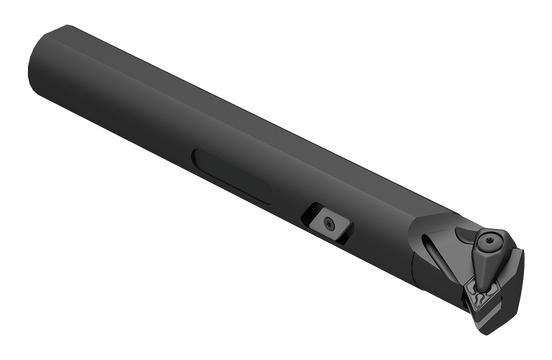

MAXILOCK D INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 300.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DDUNL |
| Overall Length (Inch) | 11.82 |
| Short Description | A40T DDUNL 15 |
| Long Description | MAXILOCK D INTERNAL TOOLHOLDER A40T DDUNL 15 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 39 mm |
| Orthogonal Rake Angle | 10 degrees |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40.0 |
| Functional Width (Decimal) | 1.07 |
| Functional Width (Metric) | 27.0 |
| Head Length (Decimal) | 0.49 |
| Head Length (Metric) | 12.4 |
| Min. Bore Diameter (Decimal) | 1.97 |
| Min. Bore Diameter (Metric) | 50.0 |
| End Chamfer Angle | 40 degrees |
| End Chamfer Distance (Decimal) | 0.52 |
| End Chamfer Distance (Metric) | 13.0 |
| Body Diameter Reduced (Decimal) | 1.56 |
| Body Diameter Reduced (Metric) | 39.5 |
| Connection Type | CYL |
| Inclination Angle | 6 degrees |
| Reduced Body Diameter Length (Metric) | 45.0 |
| Reduced Body Diameter Length (Decimal) | 1.78 |
| Tightening Torque (Nm) | 4.0 |
| Holder Form | DDUN93 |
