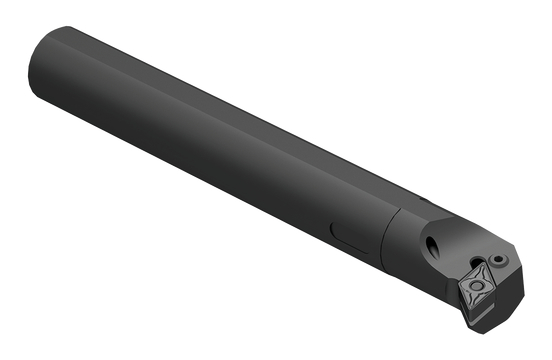

MAXILOCK N INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 250.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PDUNL |
| Overall Length (Inch) | 9.85 |
| Short Description | A32S PDUNL 11 |
| Long Description | MAXILOCK N INTERNAL TOOLHOLDER A32S PDUNL 11 |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Orthogonal Rake Angle | 11 degrees |
| Shank Height (Metric) | 30.0 |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32.0 |
| Functional Width (Decimal) | 0.87 |
| Functional Width (Metric) | 22.0 |
| Head Length (Decimal) | 0.4 |
| Head Length (Metric) | 10.0 |
| Min. Bore Diameter (Decimal) | 1.58 |
| Min. Bore Diameter (Metric) | 40.0 |
| End Chamfer Angle | 60 degrees |
| End Chamfer Distance (Decimal) | 0.33 |
| End Chamfer Distance (Metric) | 8.2 |
| Body Diameter Reduced (Decimal) | 1.24 |
| Body Diameter Reduced (Metric) | 31.5 |
| Connection Type | CYL |
| Inclination Angle | 7 degrees |
| Reduced Body Diameter Length (Metric) | 36.0 |
| Reduced Body Diameter Length (Decimal) | 1.42 |
| Tightening Torque (Nm) | 3.0 |
| Holder Form | PDUN93 |
