Ceratizit
7.0561225E7

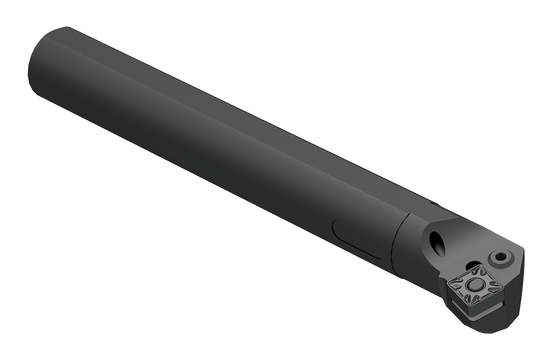

MAXILOCK N INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 203.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSKNL |
| Overall Length (Inch) | 8.0 |
| Short Description | A25R PSKNL 12 |
| Long Description | MAXILOCK N INTERNAL TOOLHOLDER A25R PSKNL 12 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 23 mm |
| Orthogonal Rake Angle | 15 degrees |
| Connection Diameter (Decimal) | 0.99 |
| Connection Diameter (Metric) | 25.0 |
| Functional Length (Decimal) | 7.88 |
| Functional Length (Metric) | 200.0 |
| Functional Width (Decimal) | 0.67 |
| Functional Width (Metric) | 17.0 |
| Head Length (Decimal) | 0.68 |
| Head Length (Metric) | 17.06 |
| Min. Bore Diameter (Decimal) | 1.26 |
| Min. Bore Diameter (Metric) | 32.0 |
| End Chamfer Angle | 36.20 degrees |
| End Chamfer Distance (Decimal) | 0.37 |
| End Chamfer Distance (Metric) | 9.4 |
| Body Diameter Reduced (Decimal) | 0.97 |
| Body Diameter Reduced (Metric) | 24.5 |
| Connection Type | CYL |
| Inclination Angle | 6 degrees |
| Reduced Body Diameter Length (Metric) | 36.0 |
| Reduced Body Diameter Length (Decimal) | 1.42 |
| Tightening Torque (Nm) | 4.0 |
| Holder Form | PSKN75 |
