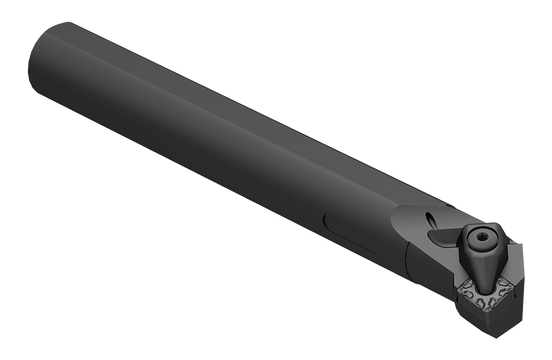

MAXILOCK D INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 180.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DCLNL |
| Overall Length (Inch) | 7.09 |
| Short Description | A20Q DCLNL 09 |
| Long Description | MAXILOCK D INTERNAL TOOLHOLDER A20Q DCLNL 09 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 19 mm |
| Orthogonal Rake Angle | 12 degrees |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20.0 |
| Functional Width (Decimal) | 0.52 |
| Functional Width (Metric) | 13.0 |
| Head Length (Decimal) | 0.67 |
| Head Length (Metric) | 17.0 |
| Min. Bore Diameter (Decimal) | 0.99 |
| Min. Bore Diameter (Metric) | 25.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.31 |
| End Chamfer Distance (Metric) | 7.75 |
| Body Diameter Reduced (Decimal) | 0.77 |
| Body Diameter Reduced (Metric) | 19.5 |
| Connection Type | CYL |
| Inclination Angle | 7 degrees |
| Reduced Body Diameter Length (Metric) | 35.0 |
| Reduced Body Diameter Length (Decimal) | 1.38 |
| Tightening Torque (Nm) | 2.0 |
| Holder Form | DCLN95 |
