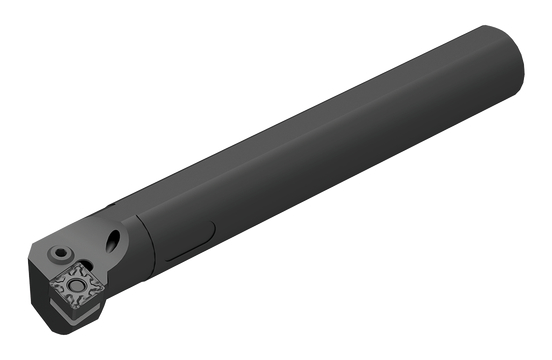

MAXILOCK N INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 400.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PCLNR |
| Overall Length (Inch) | 15.75 |
| Short Description | S40V PCLNR 12 |
| Long Description | MAXILOCK N INTERNAL TOOLHOLDER S40V PCLNR 12 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Orthogonal Rake Angle | 10 degrees |
| Shank Height (Metric) | 38.0 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40.0 |
| Functional Width (Decimal) | 1.07 |
| Functional Width (Metric) | 27.0 |
| Head Length (Decimal) | 0.91 |
| Head Length (Metric) | 23.0 |
| Min. Bore Diameter (Decimal) | 1.97 |
| Min. Bore Diameter (Metric) | 50.0 |
| End Chamfer Angle | 38 degrees |
| End Chamfer Distance (Decimal) | 0.67 |
| End Chamfer Distance (Metric) | 17.0 |
| Body Diameter Reduced (Decimal) | 1.56 |
| Body Diameter Reduced (Metric) | 39.5 |
| Connection Type | CYL |
| Inclination Angle | 6 degrees |
| Reduced Body Diameter Length (Metric) | 24.1 |
| Reduced Body Diameter Length (Decimal) | 0.95 |
| Tightening Torque (Nm) | 4.0 |
| Holder Form | PCLN95 |
