Ceratizit
7.054182E7

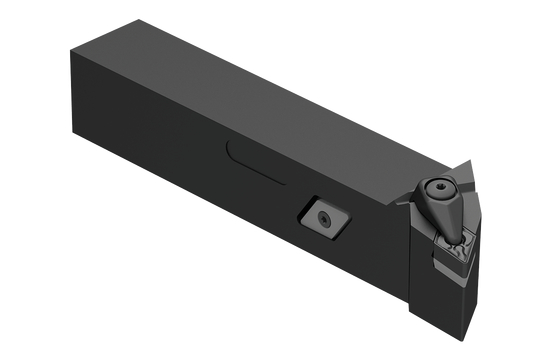

MAXILOCK D EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DDJNL |
| Overall Length (Inch) | 4.93 |
| Short Description | DDJNL 2020 K11 |
| Long Description | MAXILOCK D EXTERNAL TOOLHOLDER DDJNL 2020 K11 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Width (Decimal) | 0.79 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 1.3 |
| Head Length (Metric) | 33.0 |
| End Chamfer Angle | 40 degrees |
| End Chamfer Distance (Decimal) | 0.42 |
| End Chamfer Distance (Metric) | 10.6 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 25.24 |
| Overall Height (Decimal) | 1.0 |
| Tightening Torque (Nm) | 2.0 |
| Holder Form | DDJN93 |
