Ceratizit
7.0540132E9

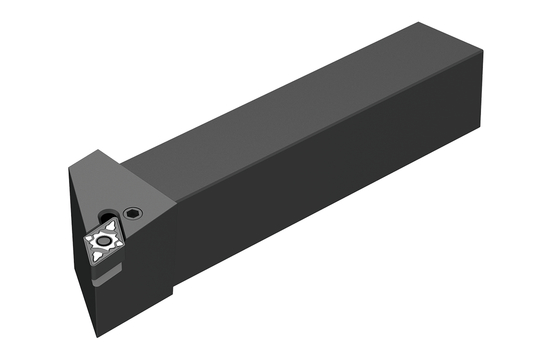

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PDJNR |
| Overall Length (Inch) | 6.7 |
| Short Description | PDJNR 3232 P15-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PDJNR 3232 P15-T |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.26 Inch |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Metric) | 32.0 |
| Shank Height (Metric) | 32.0 |
| Functional Width (Decimal) | 1.58 |
| Functional Width (Metric) | 40.0 |
| Head Length (Decimal) | 1.37 |
| Head Length (Metric) | 34.7 |
| End Chamfer Angle | 58.50 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32.0 |
| Functional Height (Decimal) | 1.26 |
| Inclination Angle | 7 degrees |
| Overall Height (Metric) | 38.0 |
| Overall Height (Decimal) | 1.5 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | PDJN93 |
