Ceratizit
7.054002E7

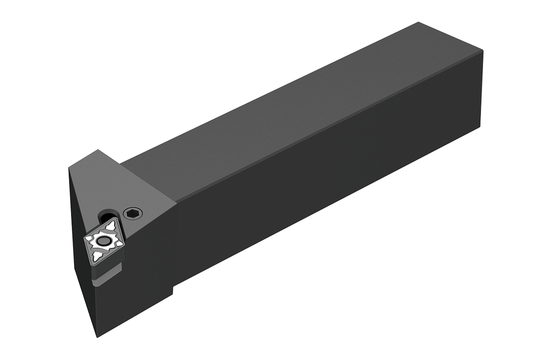

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PDJNR |
| Overall Length (Inch) | 4.93 |
| Short Description | PDJNR 2020 K15-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PDJNR 2020 K15-T |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.79 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 1.38 |
| Head Length (Metric) | 34.9 |
| End Chamfer Angle | 58.50 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Inclination Angle | 7 degrees |
| Overall Height (Metric) | 26.0 |
| Overall Height (Decimal) | 1.03 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | PDJN93 |
