Ceratizit
7.053302E7

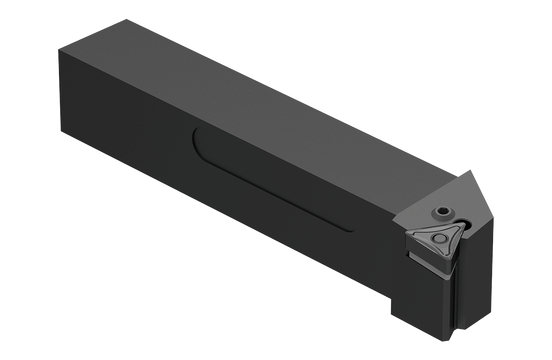

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PTGNL |
| Overall Length (Inch) | 4.93 |
| Short Description | PTGNL 2020 K16-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PTGNL 2020 K16-T |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.79 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 0.79 |
| Head Length (Metric) | 20.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Inclination Angle | 6 degrees |
| Tightening Torque (Nm) | 3.0 |
| Holder Form | PTGN91 |
