Ceratizit
7.0532125E7

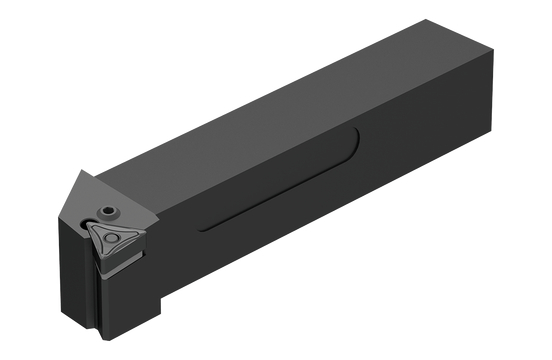

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PTGNR |
| Overall Length (Inch) | 5.91 |
| Short Description | PTGNR 2525 M22-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PTGNR 2525 M22-T |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 25 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.99 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 1.15 |
| Head Length (Metric) | 29.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 25.0 |
| Functional Height (Decimal) | 0.99 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 29.5 |
| Overall Height (Decimal) | 1.17 |
| Tightening Torque (Nm) | 4.0 |
| Holder Form | PTGN91 |
