Ceratizit
7.0520725E7

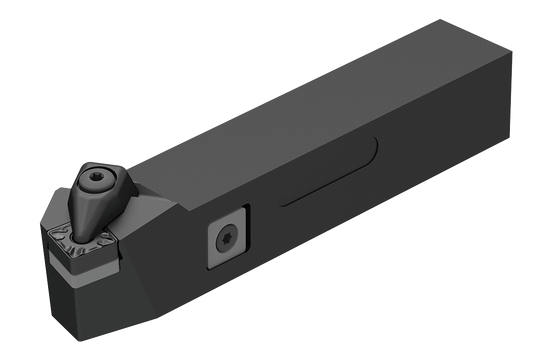

MAXILOCK D EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DSBNR |
| Overall Length (Inch) | 5.91 |
| Short Description | DSBNR 2525 M15 |
| Long Description | MAXILOCK D EXTERNAL TOOLHOLDER DSBNR 2525 M15 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 25 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.99 |
| Functional Width (Decimal) | 0.87 |
| Functional Width (Metric) | 22.0 |
| Head Length (Decimal) | 1.66 |
| Head Length (Metric) | 42.0 |
| End Chamfer Angle | 30 degrees |
| End Chamfer Distance (Decimal) | 0.19 |
| End Chamfer Distance (Metric) | 4.71 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 25.0 |
| Functional Height (Decimal) | 0.99 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 30.43 |
| Overall Height (Decimal) | 1.2 |
| Tightening Torque (Nm) | 6,5 |
| Holder Form | DSBN75 |
