Ceratizit
7.0520232E7

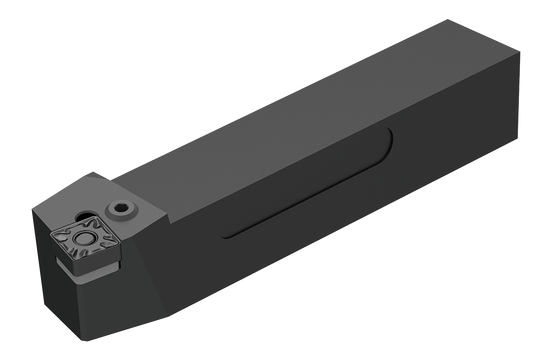

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSBNR |
| Overall Length (Inch) | 6.7 |
| Short Description | PSBNR 3232 P19-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PSBNR 3232 P19-T |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 32 mm |
| Shank Height | 32 mm |
| Shank Width (Decimal) | 1.26 |
| Functional Width (Decimal) | 1.07 |
| Functional Width (Metric) | 27.0 |
| Head Length (Decimal) | 1.55 |
| Head Length (Metric) | 39.2 |
| Connection Type | VKT - Square |
| Tightening Torque (Nm) | 8.0 |
| Holder Form | PSBN75 |
