Ceratizit
7.0516032E9

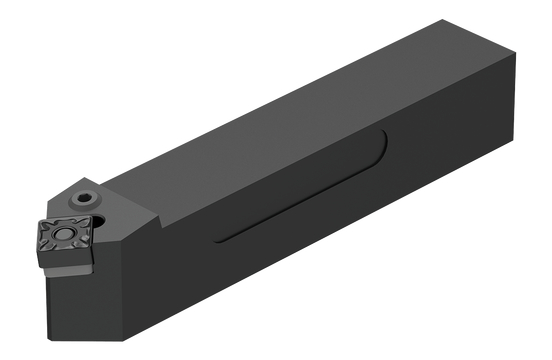

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSDNN |
| Overall Length (Inch) | 6.7 |
| Short Description | PSDNN 3225 P19-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PSDNN 3225 P19-T |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.99 Inch |
| Shank Width (Metric) | 25.0 |
| Shank Height (Metric) | 32.0 |
| Functional Width (Decimal) | 0.5 |
| Functional Width (Metric) | 12.5 |
| Head Length (Decimal) | 1.6 |
| Head Length (Metric) | 40.4 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32.0 |
| Functional Height (Decimal) | 1.26 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 37.86 |
| Overall Height (Decimal) | 1.5 |
| Tightening Torque (Nm) | 8.0 |
| Holder Form | PSDN45 |
