Ceratizit
7.0513232E7

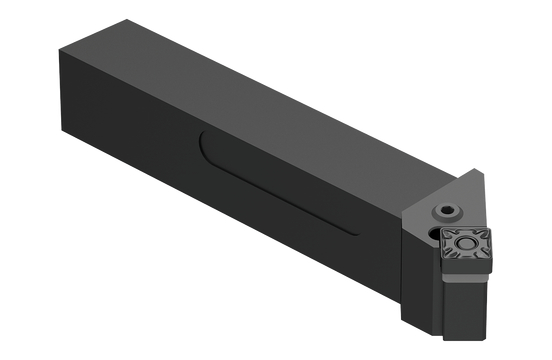

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 183.5 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSSNL |
| Overall Length (Inch) | 7.23 |
| Short Description | PSSNL 3232 P19-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PSSNL 3232 P19-T |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 32 mm |
| Shank Height | 32 mm |
| Orthogonal Rake Angle | 8 degrees |
| Shank Width (Decimal) | 1.26 |
| Functional Length (Decimal) | 6.7 |
| Functional Length (Metric) | 170.0 |
| Functional Width (Decimal) | 1.58 |
| Functional Width (Metric) | 40.0 |
| Head Length (Decimal) | 1.59 |
| Head Length (Metric) | 40.2 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 1.05 |
| End Chamfer Distance (Metric) | 26.5 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32.0 |
| Functional Height (Decimal) | 1.26 |
| Overall Height (Metric) | 37.0 |
| Overall Height (Decimal) | 1.46 |
| Tightening Torque (Nm) | 8.0 |
| Holder Form | PSSN45 |
