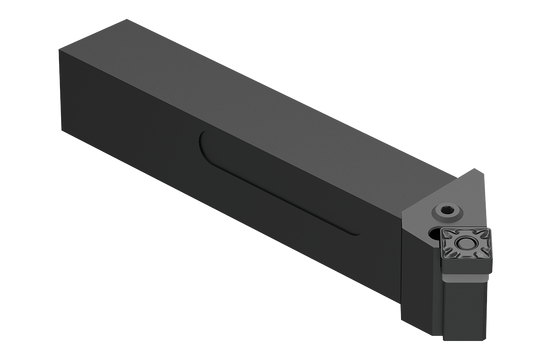

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 106.7 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSSNL |
| Overall Length (Inch) | 4.21 |
| Short Description | PSSNL 1616 H09-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PSSNL 1616 H09-T |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Shank Height | 16 mm |
| Orthogonal Rake Angle | 8 degrees |
| Shank Width (Decimal) | 0.63 |
| Functional Length (Decimal) | 3.94 |
| Functional Length (Metric) | 100.0 |
| Functional Width (Decimal) | 0.79 |
| Functional Width (Metric) | 20.0 |
| Head Length (Decimal) | 0.93 |
| Head Length (Metric) | 23.6 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.5 |
| End Chamfer Distance (Metric) | 12.5 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16.0 |
| Functional Height (Decimal) | 0.63 |
| Overall Height (Metric) | 19.6 |
| Overall Height (Decimal) | 0.78 |
| Tightening Torque (Nm) | 3.0 |
| Holder Form | PSSN45 |
