Ceratizit
7.0512125E7

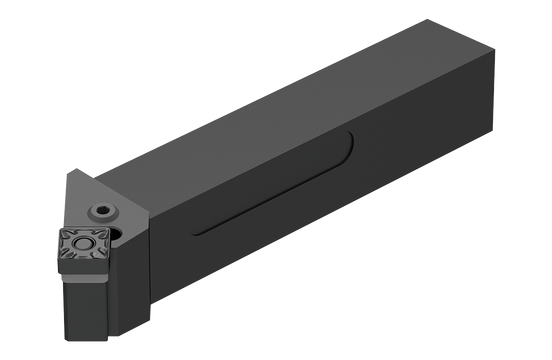

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 161.2 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSSNR |
| Overall Length (Inch) | 6.35 |
| Short Description | PSSNR 2525 M15-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PSSNR 2525 M15-T |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 25 mm |
| Orthogonal Rake Angle | 8 degrees |
| Shank Width (Decimal) | 0.99 |
| Functional Length (Decimal) | 5.91 |
| Functional Length (Metric) | 150.0 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32.0 |
| Head Length (Decimal) | 1.28 |
| Head Length (Metric) | 32.5 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.82 |
| End Chamfer Distance (Metric) | 20.8 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 25.0 |
| Functional Height (Decimal) | 0.99 |
| Overall Height (Metric) | 30.25 |
| Overall Height (Decimal) | 1.2 |
| Tightening Torque (Nm) | 4.0 |
| Holder Form | PSSN45 |
