Ceratizit
7.051202E7

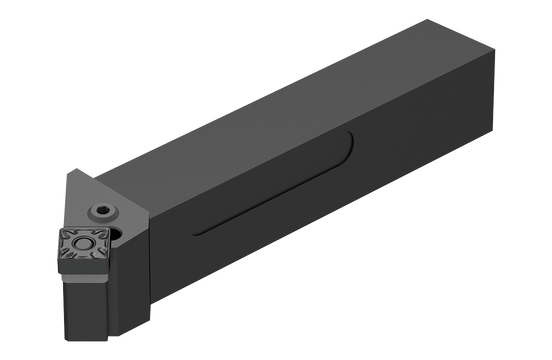

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 134.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSSNR |
| Overall Length (Inch) | 5.28 |
| Short Description | PSSNR 2020 K12-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PSSNR 2020 K12-T |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Orthogonal Rake Angle | 8 degrees |
| Shank Width (Decimal) | 0.79 |
| Functional Length (Decimal) | 4.93 |
| Functional Length (Metric) | 125.0 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 1.08 |
| Head Length (Metric) | 27.3 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.65 |
| End Chamfer Distance (Metric) | 16.35 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Overall Height (Metric) | 23.8 |
| Overall Height (Decimal) | 0.94 |
| Tightening Torque (Nm) | 4.0 |
| Holder Form | PSSN45 |
