Ceratizit
7.0509732E7

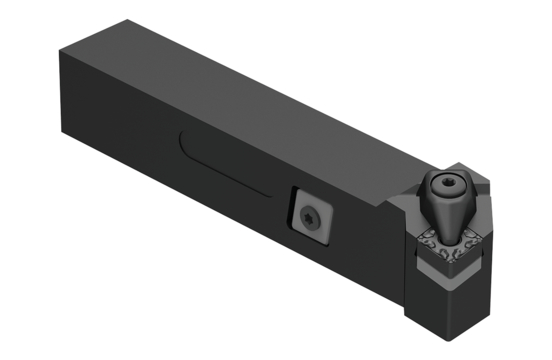

MAXILOCK D EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DCLNL |
| Overall Length (Inch) | 6.7 |
| Short Description | DCLNL 3232 P16 |
| Long Description | MAXILOCK D EXTERNAL TOOLHOLDER DCLNL 3232 P16 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 32 mm |
| Shank Height | 32 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 1.26 |
| Functional Width (Decimal) | 1.58 |
| Functional Width (Metric) | 40.0 |
| Head Length (Decimal) | 1.42 |
| Head Length (Metric) | 36.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.72 |
| End Chamfer Distance (Metric) | 18.3 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32.0 |
| Functional Height (Decimal) | 1.26 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 37.86 |
| Overall Height (Decimal) | 1.5 |
| Tightening Torque (Nm) | 6,5 |
| Holder Form | DCLN95 |
